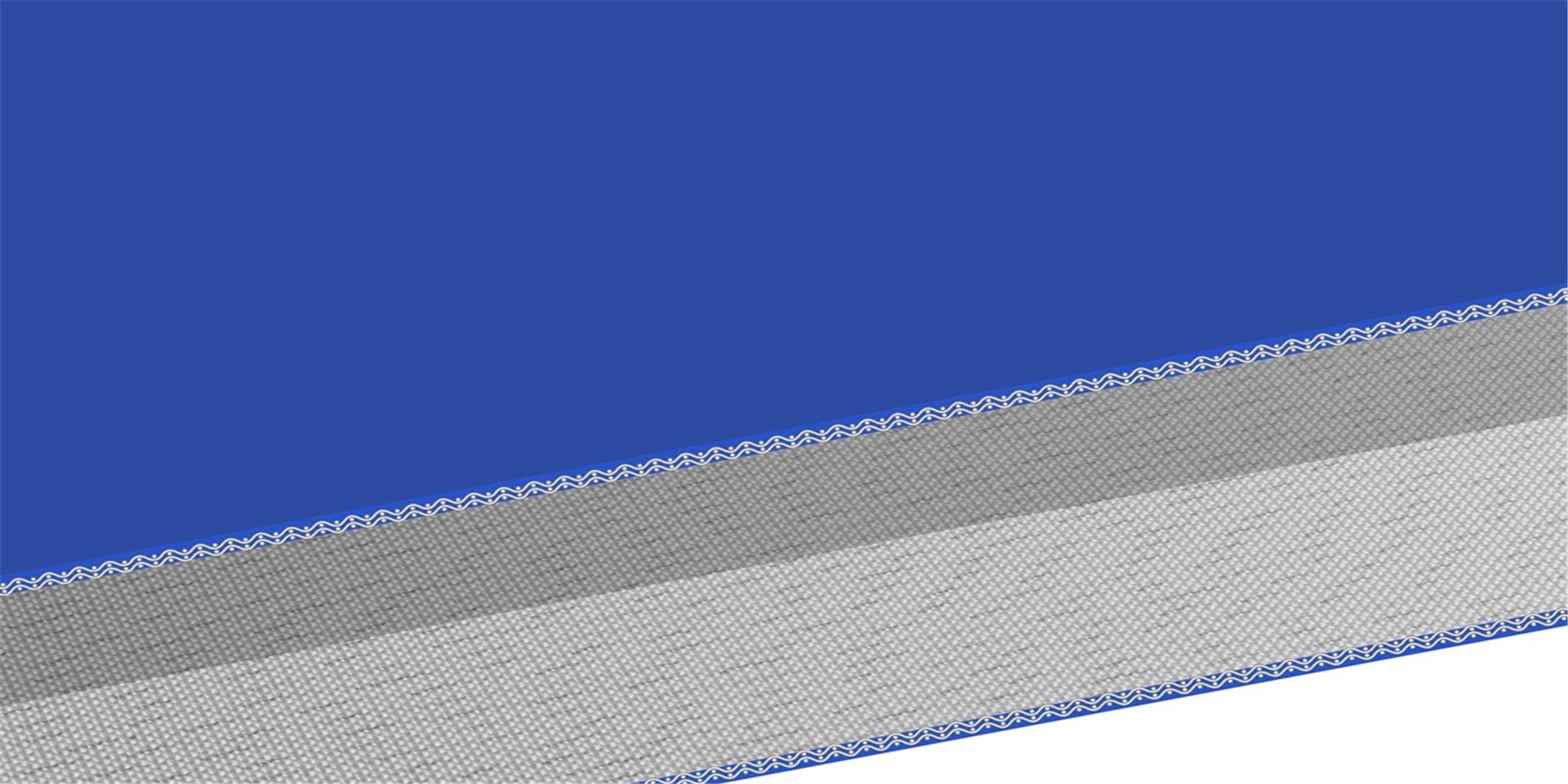

Forming Belts for Particle Board Manufacturing

Surface Material: TPU
Thickness: 1.8mm
Color: Blue
Tensile Force: 16

Pulley diameter (minimum): 25mm

Antistatic: Yes

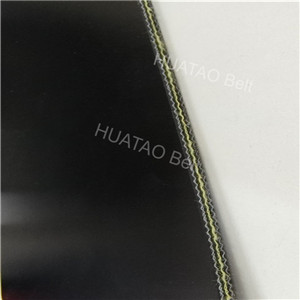

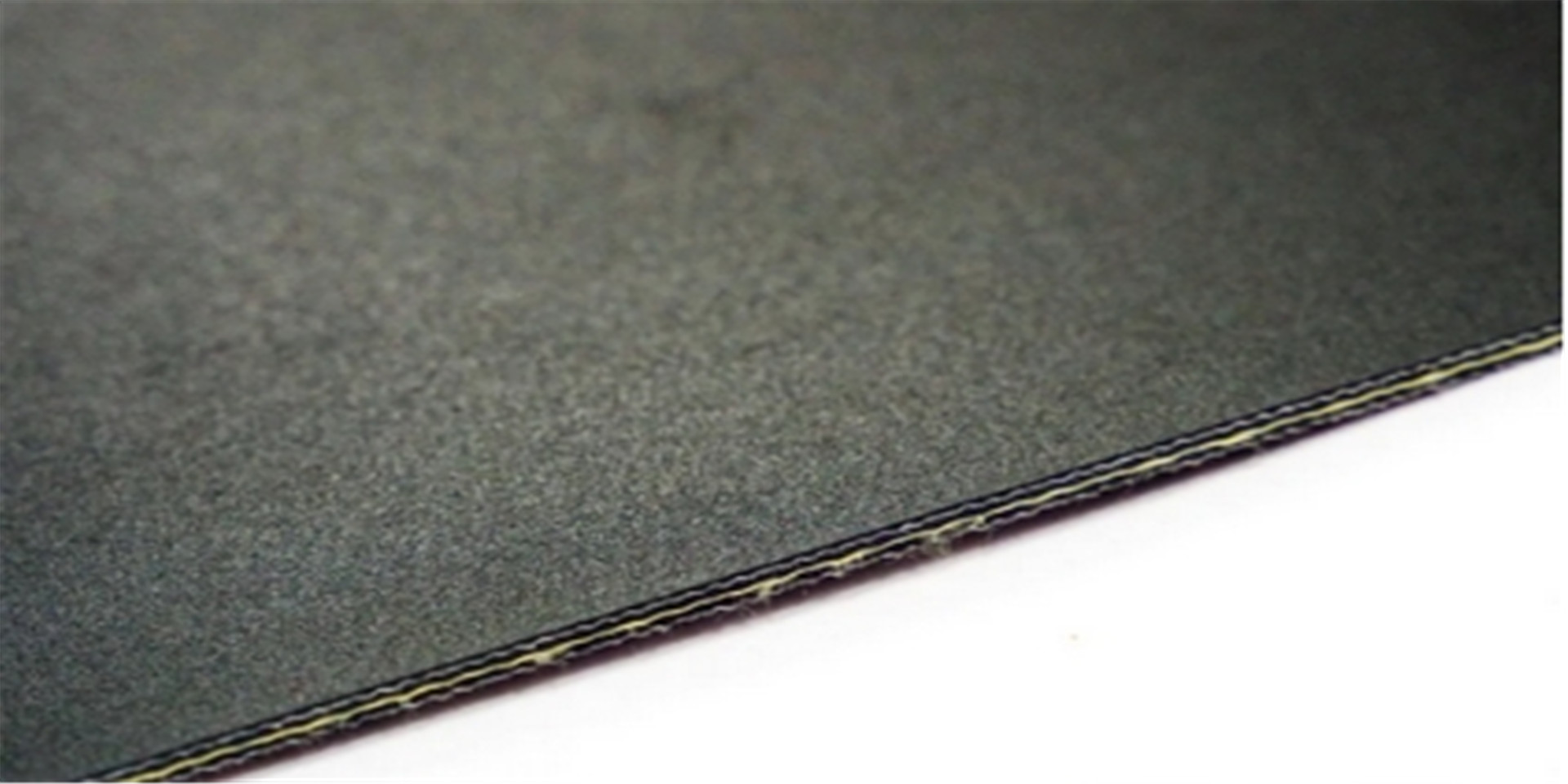

 Our Pre-pressing belts have an anti-static surface that effectively prevents sparks from friction.

Coating Material: TPU/Aramid

Belt thickness: 3.8mm

Force at 1% elongation: 160N/mm

Surface hardness: 193 Shore A

Operating temperature: -20°C~+90°℃

Antistatic: Yes

Maximum width: 3200mm

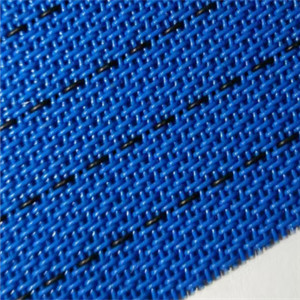

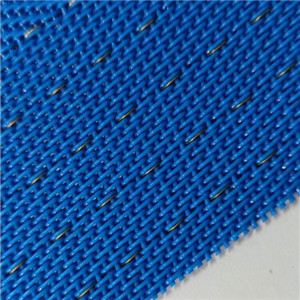

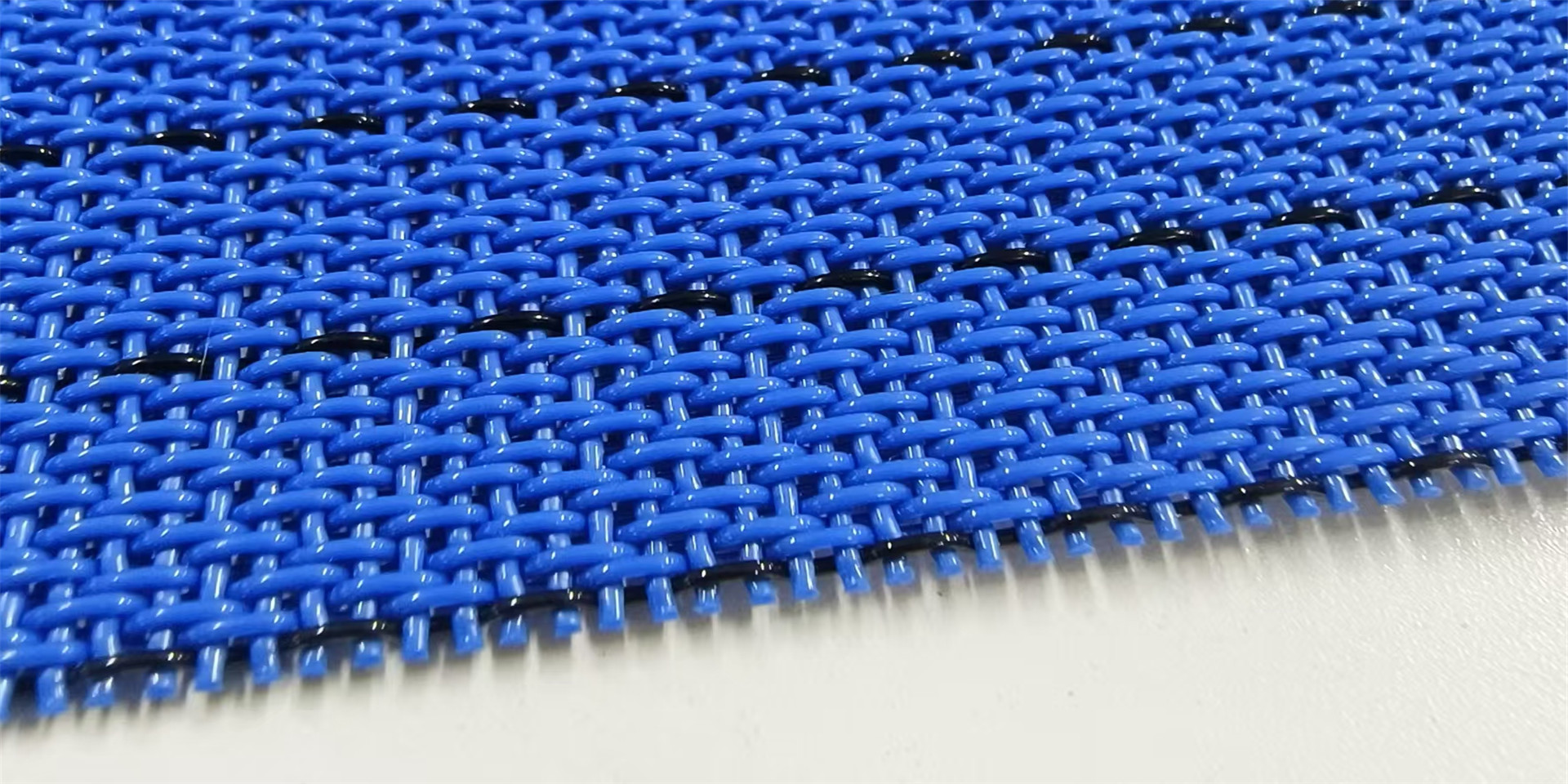

Deaeration Belt uses a special silk thread, which is wear-resistant and tensile-resistant and can adapt to any chemical substances introduced in the wood-based panel industry, making the mesh belt have excellent breathability. The antistatic black silk thread makes the mesh belt have good antistatic and anti-sticking properties, effectively preventing fibers from blocking the mesh belt and improving production efficiency. The joints use endless, pin rings, and spiral rings, which can be selected according to the specific use of customers.

Deaeration Belt have a high proportion of warp threads, are highly air permeable and have a very smooth surface. The extremely strong Z-splice.

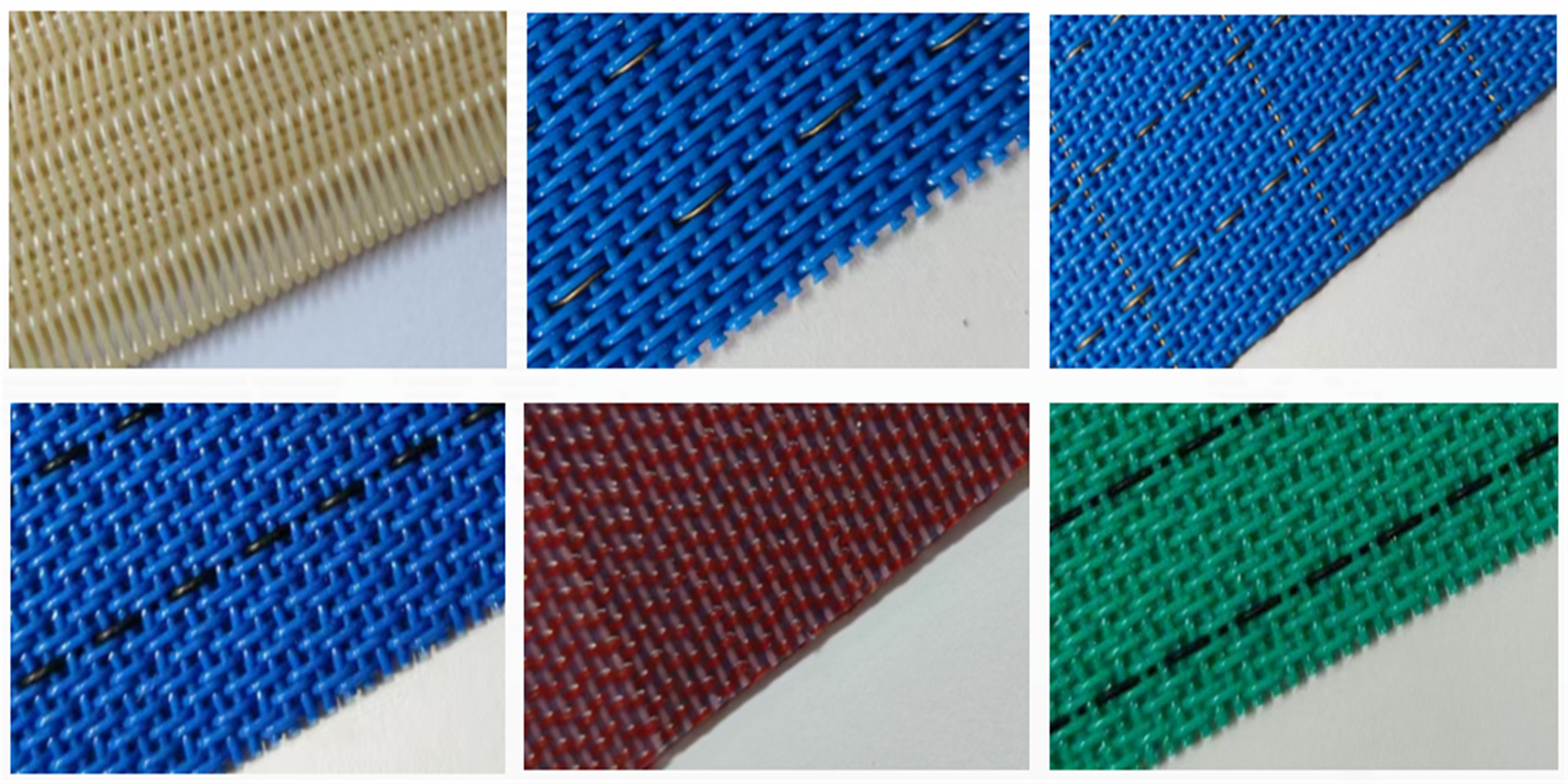

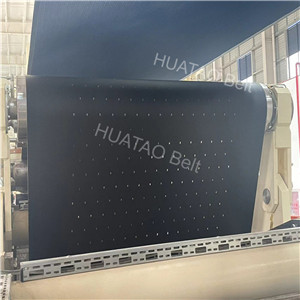

The steam matpreheater belt is mainly used in the steam pre-heater processing section of Wood Based Panel Manufacturing Line. Through external pressure, high-temperature water vapor quickly penetrates the interior of the slab, uniformly and instantly heating the entire slab, which can shorten the board making time, improve production efficiency, and save energy.

When the steam-spraying equipment is working, steam passes through the mesh belt to heat the Mate. The mesh belt is usually symmetrically arranged up and down, and a gap is formed in the middle for the slab to pass through.

It can maintain stable performance at 120-140℃ or even higher temperatures. For example, some mesh belts made of thermoplastic resin monofilaments and carbon fiber monofilaments can reach a long-term use temperature of 180°C and a short-term use temperature of 200°C.

Polyester Forming Belt for MDF Multi-Stage Press Machine

The polyester forming belt for the Multi-Stage Press Machine, which is different from the PU forming belt. most usd for MDF and Particle Boards keep the Multi-Stage Press Machine now.

This product is specially designed for MDF / HDF multi-open press production line, which can significantly solve the problem of board density stratification caused by the easy deformation and uneven air permeability of traditional forming belts.
